Sheet Metal Quality Inspection Service
Inspection follows the controlled drawing, approved sample and project-specific acceptance plan through first-piece, in-process, assembly and pre-shipment checks. The photo below is one real surface and workmanship checkpoint; the complete inspection scope is defined by each buyer drawing.
Scope
Why “Full Inspection” Is Not a Specification
A generic statement such as “full inspection” is not enough for an OEM project. The buyer should identify critical dimensions, appearance requirements, material documents, functional interfaces and the evidence needed at each release point. Fulei Metal then aligns the practical inspection record with that agreed scope.
Real production video
In-Process Measurement on Our Shop Floor

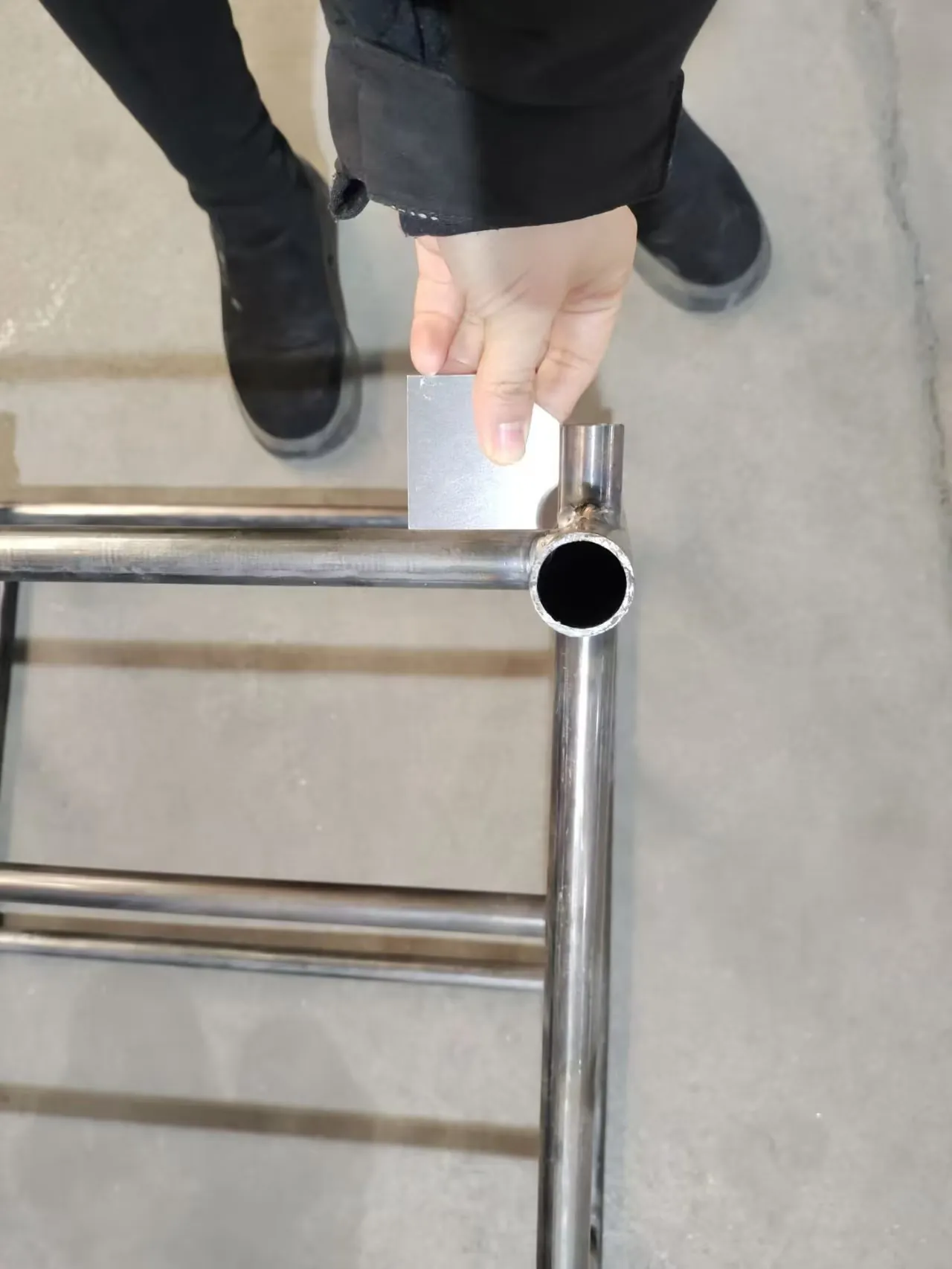

These short clips show actual work at Fulei Metal. They support the process explanation; the controlled drawing and written quotation still define the final route.
Documentation
What Your Inspection Report Actually Contains
A report that only says “inspected” cannot be checked later. This is the record that leaves the factory with the parts.
A dimensional report for a fabricated part typically carries ten to thirty characteristics: overall lengths and widths, material thickness, bend angles and hole-to-edge distances. Each row pairs the requirement taken from the drawing — 165° ± 2°, 9.5 ± 0.13 mm, 80.0 ± 0.8 mm — with the value actually measured, one result column per sample part, and a verdict. Nothing is recorded as “checked” without a number beside it.
The header fields matter as much as the measurements, because they are what lets your quality team make sense of the record months later.
| Part number and drawing revision | A report is only valid for the revision it was measured against. A later revision needs a new first article. |
|---|---|
| Sample quantity against batch quantity | Five inspected parts say little about a batch of five hundred unless the sample rule and the batch size are both stated on the same form. |
| Requirement beside each measurement | A number without the tolerance it is compared to cannot be judged by anyone else afterwards — including us. |
| Method used per characteristic | A ±0.05 mm callout released with a tape measure is not evidence. Calipers, height gauges, gauges and radius gauges are named row by row. |
| Inspector, date and seal | Someone is accountable for the result and the record can be tied to a shift and a date. |
| Conclusion and disposition | OK or NG, plus what happens to any non-conforming part: rework, acceptance by concession, 100% sort, or scrap. |
Nothing is rounded into a pass. Where a measured value falls outside the requirement, the part goes to a non-conformance record and the decision is taken with you before anything ships. If one failing dimension suggests the process has shifted, we widen the check to the rest of the batch rather than sending a report that happens to look clean.
The same discipline runs through incoming material, first article, in-process and final release. For how these records are structured, see inspection report documentation; for the first-piece case specifically, first article inspection; and for how sample sizes are chosen, AQL sampling standards. The wider acceptance plan is set out in the quality inspection checklist for sheet metal enclosures.
Specifications
Inspection Specifications and Capabilities
| Inspection stages | Incoming material, first article, in-process and outgoing inspection |
|---|---|
| Measuring tools | Calipers, height gauges, gauges, radius gauges and thread gauges |
| Coating checks | Coating thickness measurement and salt-spray testing to ISO 9227 where specified |
| Critical dimensions | Held to ±0.1 mm where identified as critical on your drawing |
| Sampling | Per drawing or to an agreed AQL sampling plan for batch orders |
| Documentation | Dimensional report and inspection records against the drawing revision |
| Third-party inspection | Buyer-arranged or third-party inspection can be supported at your request |
| Minimum order quantity | 10 pcs (large parts) / 50 pcs (medium parts) / 1,000 pcs (small parts) |
Manufacturing route
Where Each Checkpoint Sits in the Process
- 01
Confirm the inspection basis and current revision
- 02
Verify the first piece at the process where risk occurs
- 03
Record agreed in-process checks
- 04
Inspect assembly fit, appearance and accessory count
- 05
Release the shipment with required documents or photos
Engineering checkpoints
What Has to Be Agreed Before the First Piece Is Measured
Each point below is settled before the first piece is measured, because what is not agreed up front cannot be judged afterwards — by your quality team or by us.
Material identity
Grade, thickness and any requested certificate need to remain linked to the project.
Process checkpoints
Problems are cheaper to correct before coating or final assembly hides the cause.
Functional interfaces
Door gaps, mounting points, connector openings and mating surfaces deserve priority over noncritical dimensions.
Evidence scope
Reports, photos and samples are agreed by project; they should not be promised as a vague blanket package.
Buyer input
What to Send With an Inspection Enquiry
These are the items that turn the word inspection into an agreed scope with a number beside every characteristic.
- Critical dimensions and drawing datums
- General and project-specific tolerances
- Cosmetic acceptance references
- Material and finish document requirements
- First-article and pre-shipment record format
FAQ
Inspection Questions Buyers Ask Before Ordering
What do you need to define an inspection scope?
The drawing revision, the critical dimensions and the datums they are measured from, the general and project-specific tolerances, a reference for cosmetic acceptance, and the material or finish documents the project needs. Say what evidence is required at first article and at shipment — those are usually different.
Is the first article inspected on the same basis as the batch?
Yes. The first piece is verified at the process where the risk occurs and measured against the current drawing revision; the batch follows the agreed sampling plan. A report is only valid for the revision it was measured against, so a later revision needs a new first article.
Which characteristics can you actually measure?
Calipers, height gauges, gauges, radius gauges and thread gauges cover the dimensional work, and critical dimensions are held to ±0.1 mm where your drawing identifies them as critical. Coating thickness is measured, and salt-spray testing to ISO 9227 is carried out where the drawing calls for it. Sampling follows your drawing or an agreed AQL plan.
Can the report be tied to a revision and a batch?
Yes. The record carries the part number and drawing revision, sample quantity against batch quantity, the requirement beside each measured value, the method used per characteristic, and the inspector, date and disposition. Nothing is written as “checked” without a number beside it. Material documents are handled separately under certification and traceability.
Can you provide first-article inspection reports?
Yes. For a new part or a new revision we inspect the first article against the drawing and provide the dimensional result, including the critical dimensions we agreed at quotation stage. Subsequent batches are checked in process and before packing.
What happens if an inspected part is out of tolerance?
The part is quarantined, the cause is identified at the process step that produced it, and the correction is made before the batch continues. We tell you what happened and what was changed rather than shipping the deviation silently.
What does an inspection report look like?
One table per drawing revision: part number, purchase order, batch quantity and inspected quantity, then every controlled characteristic with its requirement, the measured values, the method used and a verdict, closing with a conclusion, disposition, inspector, date and seal. A blank copy of the template can be shared before the order so your quality team can confirm it carries the fields they expect.
Can the measurement data be supplied as a spreadsheet?
Yes. Reports are issued as a signed PDF against the drawing revision, and where a buyer imports readings into their own supplier-quality system we also provide the measurement table as a spreadsheet so the values can be charted rather than retyped.
