Introduction

The Coordinate Measuring Machine (CMM) is one of the most powerful inspection tools in modern manufacturing. It provides precise 3D measurement of complex geometries that would be difficult or impossible to measure with hand tools. At Fulei Metal, we use CMM technology for comprehensive dimensional inspection of complex sheet metal parts.

What is a CMM?

Definition

A CMM is a device that measures the physical geometry of an object by sensing discrete points on the surface with a probing system. It records the X, Y, Z coordinates of each point and uses software to calculate dimensions, distances, angles, and geometric relationships.

How CMM Works

The probe moves to contact the part surface. The CMM records the position of the probe in 3D space. Each contact point has X, Y, Z coordinates. Software analyzes the points to calculate: distances, diameters, angles, flatness, perpendicularity, position, profile, and other geometric characteristics.

CMM Types

Bridge Type

Most common type. Bridge structure moves in X direction. Carriage moves in Y direction. Spindle moves in Z direction. High accuracy and rigidity. Suitable for: most sheet metal parts, medium to large parts.

Cantilever Type

Cantilever arm extends from column. Open access on three sides. Easier part loading. Lower rigidity than bridge type. Suitable for: small to medium parts.

Horizontal Arm

Horizontal arm extends to measure. Good for large parts. Can measure inside cavities. Lower accuracy than bridge type. Suitable for: large sheet metal assemblies, automotive parts.

Portable CMM

Articulated arm with multiple joints. Flexible positioning. Can be moved to the part. Lower accuracy than fixed CMM. Suitable for: large parts, on-machine inspection, flexible measurement.

Non-Contact CMM

Optical or laser measurement. No physical contact with part. Fast measurement of many points. Suitable for: delicate parts, complex freeform surfaces, soft materials.

Probing Systems

Touch-Trigger Probe

Most common probe type. Contacts surface at discrete points. Triggers when stylus deflects. Records point at trigger moment. Fast and reliable. Suitable for most applications.

Scanning Probe

Continuously scans surface. Collects hundreds or thousands of points per second. Provides dense point cloud. More complete surface representation. Slower than touch-trigger for simple features. Better for complex surfaces.

Optical Probe

Non-contact measurement. Uses laser or vision system. No probe contact. Fast data collection. Suitable for: delicate surfaces, soft materials, complex surfaces.

Stylus Selection

Ball diameter: typically 1-8mm. Smaller balls access smaller features. Larger balls are more robust and less affected by surface roughness. Stylus length: longer reach deeper features but less accurate. Material: ruby (standard), silicon nitride (for soft materials), ceramic (lightweight). Shape: straight, star, disc, custom.

CMM Software

Measurement Programming

Manual programming: operator drives probe and records points. Suitable for: one-off inspection, prototypes. Offline programming: program created from CAD model without CMM. Suitable for: production parts, repeated inspection. Macro programming: reusable routines for common features.

CAD Integration

Import CAD model: use 3D model as reference. Nominal dimensions from CAD: no manual entry needed. Nominal geometry: cylinders, planes, lines from CAD. Graphical programming: click on CAD features to program measurement. CAD comparison: compare measured points to CAD model.

GD&T Verification

CMM software can verify geometric tolerances per GD&T standards: flatness, straightness, circularity, cylindricity, perpendicularity, parallelism, angularity, concentricity, position, profile of a line, profile of a surface, runout.

Reporting

Graphical reports: color-coded deviation maps. Tabular reports: dimensions, tolerances, results. SPC data: export for statistical process control. Custom report formats: per customer requirements. PDF, Excel, or direct integration with quality system.

CMM Inspection Process

Part Setup

Clean the part. Mount on CMM table: stable, accessible. Use fixture if needed: locate and hold part. Align part to CMM coordinate system: manual alignment or automatic.

Alignment

Manual alignment: probe known features to establish coordinate system. Common: plane (Z axis), line (X axis), point (origin). CAD alignment: match part to CAD model. Best-fit alignment: align measured points to CAD nominal.

Feature Measurement

Measure planes: establish surfaces. Measure lines: establish edges. Measure circles: establish holes and cylinders. Measure points: establish corners and vertices. Measure curves and surfaces: for complex profiles.

Data Analysis

Software calculates: actual dimensions, deviations from nominal, geometric tolerances, pass/fail status. Compare to specification. Identify non-conformances.

Reporting

Generate inspection report. Include: part identification, features measured, nominal values, actual values, tolerances, results, pass/fail. Include graphical representation if needed. Export data for SPC.

CMM Applications in Sheet Metal

Flatness Measurement

Measure multiple points on a surface. Software calculates flatness: range of points from best-fit plane. Critical for: mounting surfaces, mating surfaces, sealing surfaces.

Hole Pattern Position

Measure hole centers. Compare to nominal positions. Calculate true position per GD&T. Verify hole pattern meets position tolerance. Critical for: bolt patterns, mounting holes.

Bend Angle Measurement

Measure surfaces on each side of bend. Software calculates angle between surfaces. More accurate than manual angle gauge. Can measure complex multi-bend parts.

Profile Measurement

Scan or probe part profile. Compare to CAD profile. Color-coded deviation map shows areas out of tolerance. Critical for: formed parts, complex geometries.

Assembly Inspection

Measure assembled product. Verify: overall dimensions, feature positions, alignment, gaps. Identify assembly distortion. Verify assembly meets specification.

CMM Advantages

Accuracy

High accuracy: typically 1.5-5 micrometers. More accurate than hand tools. Suitable for tight tolerance verification. Consistent results: not operator-dependent.

Capability

Complex geometry measurement. GD&T verification. 3D measurement. CAD comparison. Multiple features in one setup. Automated measurement.

Efficiency

Automated measurement routines. Multiple features measured without repositioning. Digital data output. Reduced inspection time for complex parts. SPC data collection.

Documentation

Automatic report generation. Digital records. Traceability. Graphical representation. Customer-ready reports.

CMM Limitations

Cost

High capital investment. Maintenance cost. Software licensing. Operator training cost. Suitable for: high-value parts, complex parts, production inspection.

Throughput

Slower than dedicated gauges for simple features. Measurement time depends on number of points. Programming time for new parts. Not suitable for: 100% inspection of high-volume simple parts.

Part Size

Limited by CMM measuring range. Large parts may require portable CMM. Very large parts may require laser tracker. Part weight limited by table capacity.

Surface Condition

Rough surfaces affect probe contact. Thin sheet may deflect under probe force. Need appropriate probe force or non-contact measurement.

CMM Best Practices

Temperature Control

Maintain temperature-controlled room: 20°C plus or minus 1°C. Allow parts to stabilize before measurement. Consider thermal expansion of part and CMM. Critical for high-accuracy measurement.

Calibration

Regular calibration per manufacturer recommendation. Daily check with reference sphere. Verify CMM accuracy with calibrated artifact. Maintain calibration records.

Probe Calibration

Calibrate probe before each measurement session. Use reference sphere. Verify probe tip diameter and position. Recalibrate after probe change.

Part Cleaning

Clean parts before measurement. Dust, oil, and debris affect measurement. Use lint-free cloth and appropriate solvent. Handle with clean gloves.

Programming

Create robust programs: account for part variation. Use appropriate probe angles: avoid collisions. Optimize probe path: minimize travel time. Verify program before production use.

Operator Training

CMM operation requires training. Software proficiency. GD&T knowledge. Part setup skills. Programming skills. Regular training updates.

At Fulei Metal

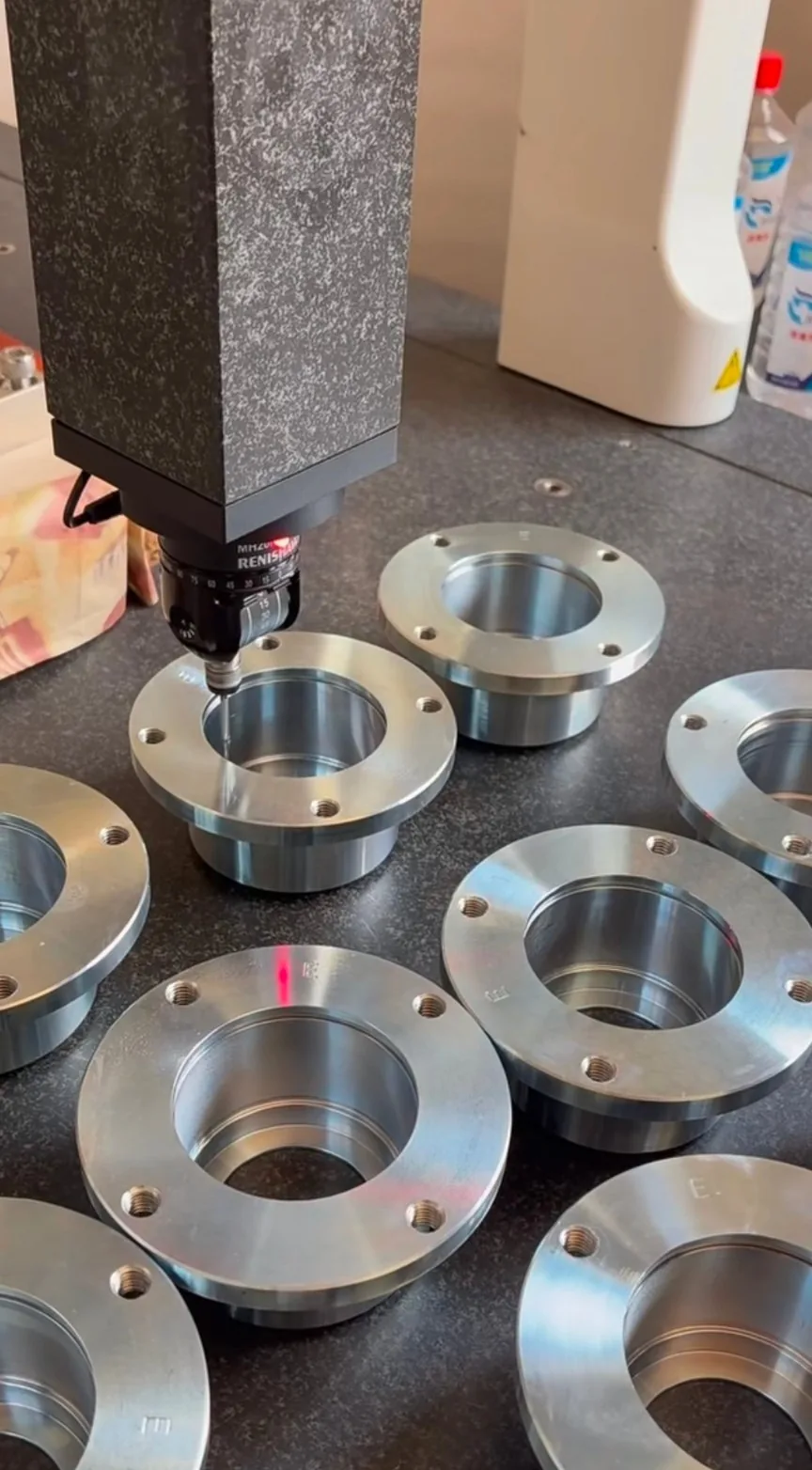

Our CMM capabilities include: bridge-type CMM with Renishaw probing. CMM software with CAD integration. Touch-trigger and scanning capability. GD&T verification. Custom report generation. SPC data export. Temperature-controlled measurement room. Trained CMM operators. We use CMM for first article inspection, complex part verification, and customer-specific inspection requirements.

Conclusion

CMM is a powerful tool for dimensional inspection of sheet metal parts. At Fulei Metal, our CMM capability enables us to verify complex geometries, tight tolerances, and geometric dimensions with precision and confidence, meeting the stringent requirements of our global clients.

For OEM buyers the practical next step is a drawing review — see our quality inspection service for what we need and how fast we turn it around. This work sits inside our custom sheet metal fabrication capability, and Leak Testing and Pressure Testing for Sheet Metal Products explains the technical background in more detail.

Where a CMM Earns Its Time, and Where It Does Not

A coordinate measuring machine is not automatically the right answer for every feature. It is more accurate on the features it is good at, and it carries setup and programming time that has to be justified by a decision the measurement changes.

For repeat production the practical pattern is CMM on first article and on any drawing change, then fixture-based gauges for the running checks. That keeps expensive measurement where it changes a decision.

Frequently Asked Questions

My calliper and your CMM disagree by 0.06 mm. Which do I believe?

The CMM, provided both are in calibration and both are measuring the same definition of the feature. A calliper measures across the high points of two edges and is sensitive to burrs, part squareness and operator feel. A CMM measures the actual surface and evaluates the feature as the drawing defines it. When two instruments disagree, the useful question is which one measures from the datum the drawing specifies.

Does a CMM need special fixturing for sheet metal parts?

Yes, and it is the most common source of bad data on thin parts. A formed panel measured lying flat and then measured held in a fixture will give different numbers because the part relaxes into a different shape. The fixture has to hold the part the way the drawing assumes it is supported — and that assumption is worth stating on the drawing.

How long does CMM programming add to a first article?

On a new part it is a real cost: probe path, alignment and feature definitions all have to be built. On repeat orders it is effectively free. This is one reason a first article on a complex part carries a higher setup element, and why re-quoting after a drawing revision is not the same as re-quoting the same part.
