Introduction
Leak testing and pressure testing verify the integrity of sealed and pressurized sheet metal products. These tests ensure that products will not leak fluids or gases under operating conditions. At Fulei Metal, we provide leak and pressure testing for products that require sealed construction.
When Leak and Pressure Testing Are Required
Sealed Enclosures
Products that must be watertight or airtight: outdoor enclosures, sealed electrical boxes, pressure vessels, fluid containers. Testing verifies that seams, welds, and gasketed joints do not leak.
Pressure Vessels
Products that contain pressurized fluids or gases: tanks, pipes, pressure housings. Testing verifies structural integrity and leak-tightness under pressure. May be required by code (ASME, PED).
Fluid Containment
Products that contain liquids: tanks, pans, reservoirs. Testing verifies no leakage that could cause environmental contamination or product failure.
Environmental Protection
Products that must exclude environmental elements: water, dust, moisture. IP-rated enclosures require testing to verify ingress protection level.
Leak Testing Methods
Pressure Decay Testing
Principle: pressurize the product, monitor pressure over time. Pressure drop indicates a leak. Method: pressurize to test pressure, isolate from source, monitor pressure for specified time, calculate leak rate from pressure drop. Sensitivity: detects leaks down to 0.1 sccm (standard cubic centimeters per minute). Advantages: simple, fast, non-destructive, automated. Limitations: temperature-sensitive, cannot locate leak.
Bubble Testing
Principle: pressurize product, submerge in liquid, observe for bubbles. Method: pressurize product with air, submerge in water or soapy solution, observe for bubbles at leak points. Sensitivity: detects leaks down to 10^-4 sccm. Advantages: simple, visual, locates leak, low cost. Limitations: manual, slow, may miss small leaks, wet product.
Helium Leak Testing
Principle: use helium as tracer gas, detect with mass spectrometer. Method: pressurize product with helium (sniffer mode) or place in helium chamber (vacuum mode), detect helium escaping from leaks. Sensitivity: detects leaks down to 10^-9 sccm. Advantages: highest sensitivity, can locate leak (sniffer mode), fast. Limitations: expensive equipment, requires helium gas, complex.
Pressure Rise Testing
Principle: evacuate product, monitor pressure rise. Method: vacuum product to low pressure, isolate from vacuum source, monitor pressure rise over time. Pressure rise indicates a leak. Advantages: suitable for products that cannot be pressurized. Limitations: less sensitive than pressure decay, temperature-sensitive.
Tracer Gas Methods
Principle: use tracer gas (helium, hydrogen) to detect leaks. Sniffer mode: probe scans exterior for tracer gas escaping from leaks. Bomb method: pressurize product with tracer gas, then sniff exterior. Vacuum method: place product in vacuum chamber, detect tracer gas in chamber. Advantages: locates leak, high sensitivity. Limitations: requires tracer gas, expensive equipment.
Ultrasonic Leak Testing
Principle: leaks produce ultrasonic sound from turbulent flow. Method: pressurize product, scan with ultrasonic detector. Advantages: non-contact, can locate leak, fast. Limitations: lower sensitivity, requires pressurization, background noise.
Pressure Testing Methods
Hydrostatic Testing
Principle: fill product with liquid, pressurize to test pressure, hold for specified time. Method: fill with water (or other liquid), pressurize to test pressure (typically 1.3-1.5x operating pressure), hold for specified time, inspect for leaks or deformation. Advantages: safe (liquid is incompressible), visual leak detection, verifies structural integrity. Limitations: wet product, slow, requires drainage.
Pneumatic Testing
Principle: pressurize product with gas, hold for specified time. Method: pressurize with air or nitrogen to test pressure, hold, inspect for leaks. Advantages: dry, fast. Limitations: dangerous (gas is compressible, stores energy), requires safety precautions.
Burst Testing
Principle: pressurize until product fails. Method: pressurize until rupture or permanent deformation. Advantages: verifies ultimate strength. Limitations: destructive, one-time test. Used for: design validation, not production.
Proof Pressure Testing
Principle: pressurize to proof pressure (above operating but below burst), verify no permanent deformation or leakage. Method: pressurize to proof pressure, hold, depressurize, inspect for deformation. Advantages: non-destructive, verifies margin. Limitations: does not verify ultimate strength.
Testing Standards
ISO Standards
ISO 11699: non-destructive testing – industrial radiographic film. ISO 17640: ultrasonic testing of welded joints. ISO 3452: dye penetrant testing. ASTM E432: standard guide for selection of leak testing methods.
ASME Standards
ASME Boiler and Pressure Vessel Code (BPVC): pressure vessel testing. ASME Section V: nondestructive examination. ASME Section VIII: pressure vessels. Specifies: test pressure, hold time, acceptance criteria.
ASTM Standards
ASTM E1003: hydrostatic leak testing. ASTM E432: selection of leak testing methods. ASTM E515: tracer gas leak testing.
Industry Standards
API (American Petroleum Institute): tank and pipeline testing. AWWA (American Water Works Association): water tank testing. UL (Underwriters Laboratories): enclosure testing.
Test Planning
Determine Test Requirements
What must be tested: product, joint, or system. What leak rate is acceptable: based on application. What pressure is required: operating pressure, test pressure. What test method is appropriate: based on sensitivity, cost, product design. What standard applies: customer, industry, or regulatory.
Test Pressure
Operating pressure: normal working pressure. Test pressure: typically 1.3-1.5x operating pressure for hydrostatic, 1.1-1.25x for pneumatic. Proof pressure: verifies structural margin, typically 1.5-2x operating. Burst pressure: expected failure pressure, typically 3-4x operating.
Acceptance Criteria
Leak rate: maximum acceptable leak rate (sccm, mbar*l/s). Pressure drop: maximum acceptable pressure drop over test time. Visual: no bubbles, no visible leakage. Structural: no deformation, no failure.
Test Duration
Pressure decay: typically 30 seconds to 5 minutes. Hydrostatic: typically 10-30 minutes. Helium: typically seconds to minutes. Duration depends on: product volume, required sensitivity, test method.
Test Equipment
Pressure Source
Compressor: for air pressure. Pump: for liquid pressure. Gas cylinder: for helium or other tracer gas. Pressure must be controllable and stable.

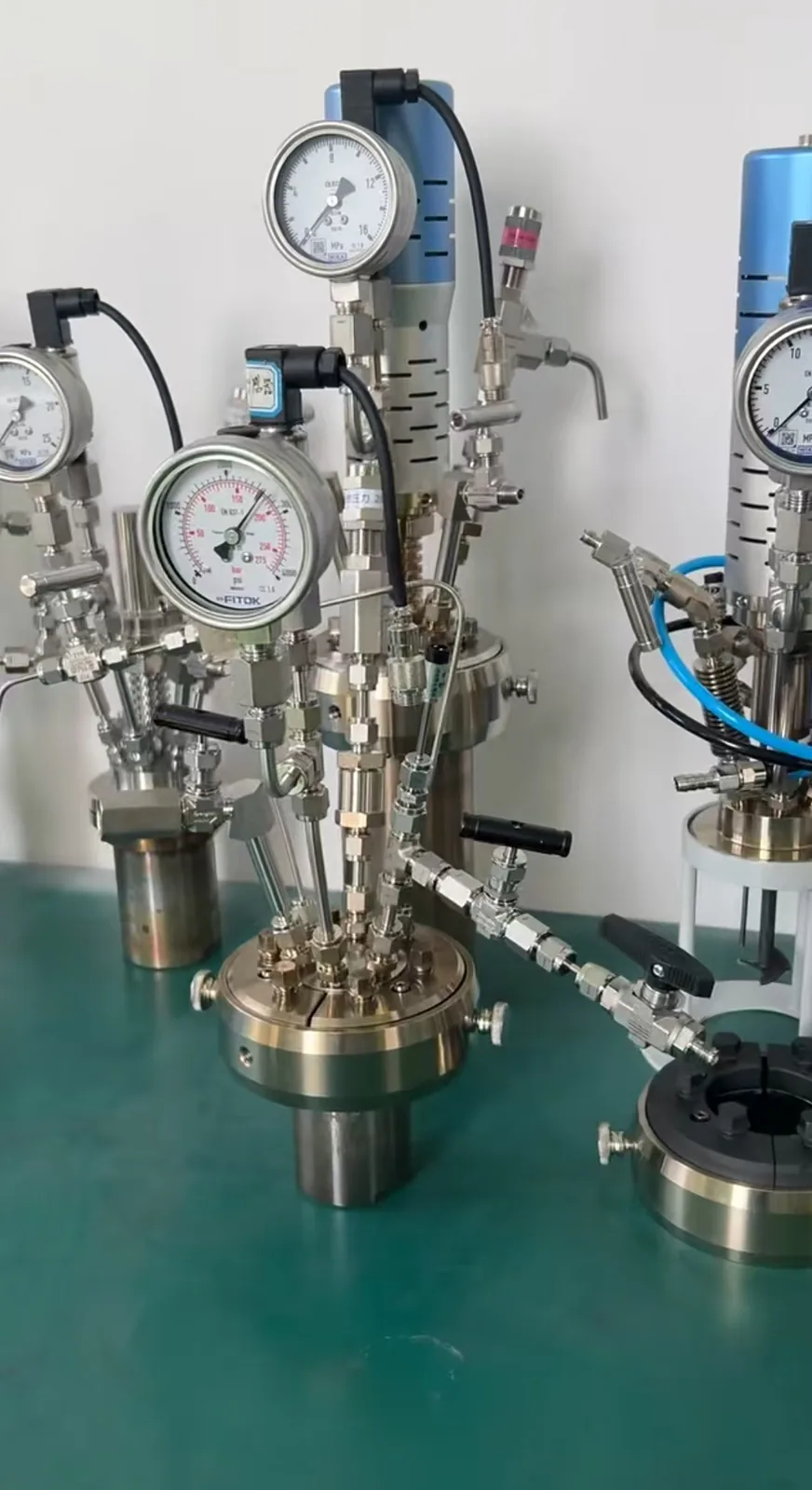

Pressure Measurement
Pressure gauge: analog or digital. Accuracy: must be suitable for test pressure. Range: must cover test pressure. Calibration: must be current.
Leak Detector
Pressure decay instrument: measures and records pressure over time. Helium mass spectrometer: detects helium tracer gas. Ultrasonic detector: detects ultrasonic sound from leaks. Bubble test: visual observation.
Fixtures
Test fixture: holds product, seals openings, provides pressure connection. May include: quick connect fittings, sealing plugs, safety enclosure. Custom designed for specific product.
Safety Considerations
Pneumatic Testing Hazards
Compressed gas stores energy. Sudden release can cause: projectile hazards, equipment damage, personnel injury. Safety measures: pressure relief valves, remote operation, safety enclosure, exclusion zone, gradual pressurization.
Hydrostatic Testing Safety
Water under pressure can cause: flooding, equipment damage. Safety measures: drainage, containment, pressure relief. Lower risk than pneumatic (water is incompressible).
General Safety
Use calibrated equipment. Follow test procedure. Wear PPE. Clear area of non-essential personnel. Have emergency procedures. Train operators on safety.
Test Documentation
Test Report
Document: product identification, test method, test pressure, test duration, test results (pass/fail), leak rate if measured, inspector, date. Maintain for traceability.
Test Procedure
Documented test procedure: step-by-step instructions, safety precautions, equipment setup, acceptance criteria. Ensures consistent testing.
Calibration Records
Maintain calibration for: pressure gauges, leak detectors, test equipment. Verify calibration before testing.
Applications in Sheet Metal
Welded Tanks and Vessels
Test weld integrity: seams, corners, fittings. Hydrostatic or pneumatic pressure test. Verify no leakage at welds.
Sealed Enclosures
Test gasketed joints and seams. Pressure decay or bubble test. Verify IP rating (ingress protection).
Ductwork and Piping
Test joints and seams. Pressure decay or bubble test. Verify no leakage in duct or pipe system.
Heat Exchangers
Test tube-to-tube-sheet joints. Pressure test each side. Verify no cross-leakage between sides.
At Fulei Metal
Our leak and pressure testing capabilities include: pressure decay testing. Bubble testing. Pressure gauge and calibrated equipment. Custom test fixtures. Hydrostatic testing. Test documentation. We provide leak and pressure testing for sealed and pressurized sheet metal products for our global clients, ensuring product integrity and safety.
Conclusion
Leak and pressure testing are essential for products that must contain fluids or gases or exclude environmental elements. At Fulei Metal, our testing capabilities ensure that our sealed and pressurized sheet metal products meet the integrity requirements of our international clients across various industries.
