Introduction
Visual inspection is the first and most common form of quality inspection. It identifies surface defects, coating issues, and visible abnormalities that affect product appearance and function. At Fulei Metal, visual inspection is performed at every stage of manufacturing.
What is Visual Inspection?
Definition
Visual inspection is the examination of a product using the human eye, optionally aided by tools such as magnifiers, lighting, or comparison standards. It identifies defects that are visible without complex measurement.
Purpose
Identify surface defects: scratches, dents, dings, marks. Verify appearance: color, texture, finish. Check for completeness: all features present. Identify contamination: dirt, oil, residue. Verify workmanship: weld quality, edge quality, fastener installation.
Advantages
Fast: can be performed quickly. Non-destructive: does not damage the part. Universal: applicable to all products. No special equipment: requires only eyes and lighting. Immediate: results available instantly.
Limitations
Subjective: results depend on inspector judgment. Operator-dependent: different inspectors may see different things. Limited to visible defects: cannot detect internal defects. Fatigue: inspector performance degrades over time. Requires training: inspectors must know what to look for.
Inspection Environment
Lighting
Adequate lighting is critical for visual inspection. Minimum lighting: 500 lux for general inspection. Recommended lighting: 1000-1500 lux for detailed inspection. Directional lighting: for detecting surface defects. Diffuse lighting: for evaluating color and appearance. Special lighting: UV light for detecting contamination.
Inspection Station
Clean, uncluttered area. Adequate workspace for handling parts. Proper lighting from correct angle. Reference samples available. Inspection documentation accessible. Comfortable seating and work height.
Inspector Conditions
Adequate rest: fatigue reduces inspection effectiveness. Regular breaks: prevent eye strain. Corrective lenses: if needed, must be current. Color vision: test for color blindness if color inspection required.
Defect Classification
Critical Defects
Defects that affect safety or function. Examples: cracks, missing features, sharp burrs in handling areas, incorrect material. Disposition: reject and investigate root cause. Must not reach customer.
Major Defects
Defects that affect appearance or may reduce function. Examples: deep scratches, visible dents, coating defects, weld defects. Disposition: reject or rework. May require customer concession if rework is not possible.
Minor Defects
Defects that are cosmetic and do not affect function. Examples: light scratches, minor color variation, small marks. Disposition: may be accepted depending on customer requirements and application. Often accepted with customer agreement on acceptance criteria.
Acceptance Criteria
Define what is acceptable and what is not. Use reference samples: physical examples of acceptable and unacceptable defects. Use photographs: document defect types and levels. Use standards: industry standards for specific defect types. Agree with customer: ensure acceptance criteria match customer expectations.
Visual Inspection Points
Raw Material Inspection
Surface condition: no rust, scratches, or damage. Material thickness: verify correct gauge. Material certification: verify material grade. Flatness: no waves or buckles. Edge condition: no excessive burr or damage.
Cut Edge Inspection
Cut quality: smooth, no excessive dross. Perpendicularity: cut edge should be perpendicular to surface (for laser cutting). Burr: minimal burr, no sharp edges. Corner condition: sharp corners intact, no rounding. Cut accuracy: verify cut dimensions visually.
Bend Inspection
Bend angle: verify visually with angle gauge. Bend radius: verify with radius gauge. Bend line: straight and correctly positioned. Surface at bend: no cracks, no excessive marking. Springback: verify angle is correct after springback.

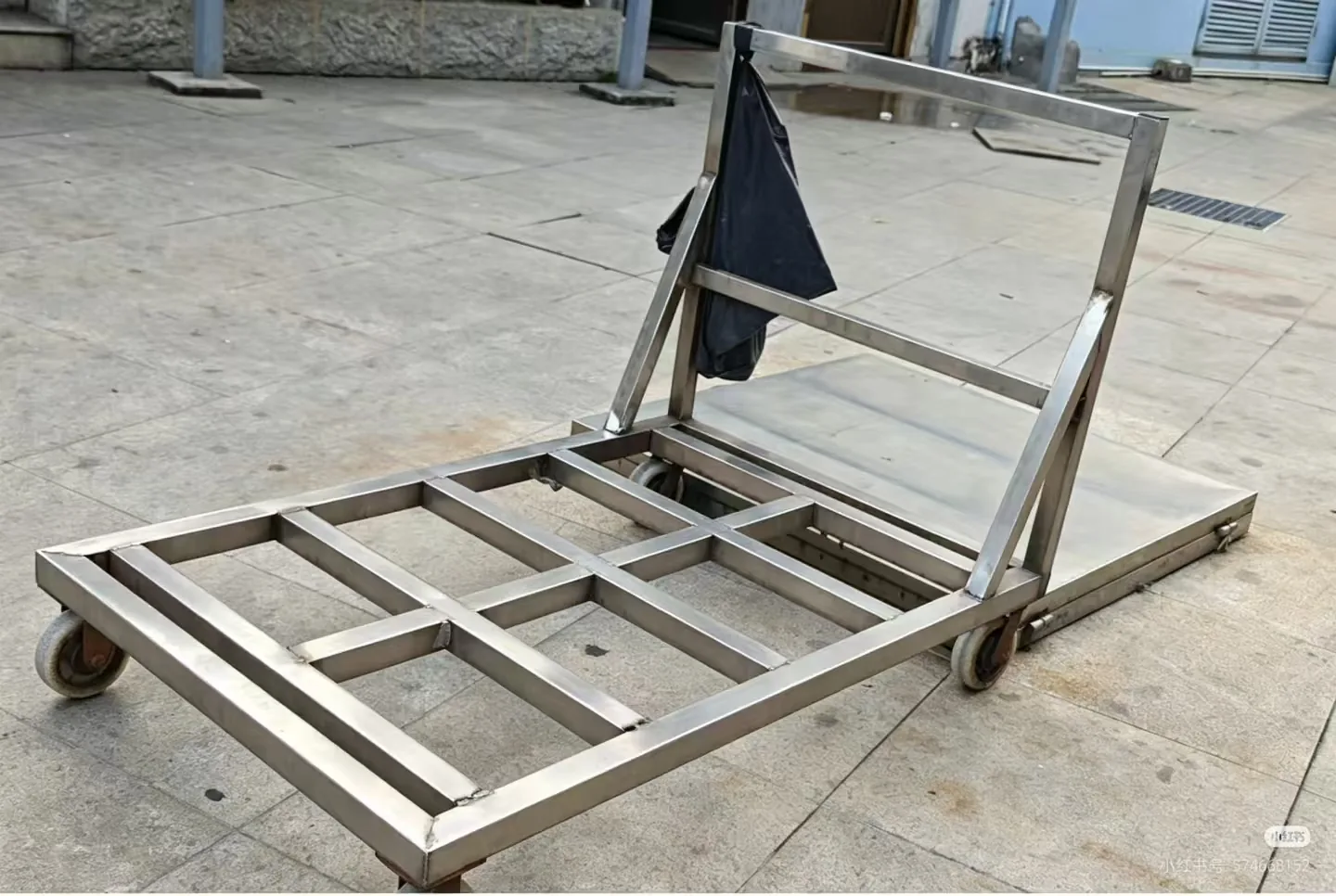

Weld Inspection
Weld appearance: uniform bead, proper size. Weld defects: cracks, porosity, undercut, spatter. Weld penetration: visible where accessible. Weld location: correct position. Weld cleanup: no slag, spatter removed.
Surface Finish Inspection
Coating coverage: complete, no bare spots. Coating defects: runs, sags, orange peel, pinholes. Color match: matches standard or previous parts. Surface texture: matches specification. Edge coverage: coating on edges and in corners.
Assembly Inspection
Component presence: all components installed. Fastener installation: all fasteners present and tightened. Alignment: components properly aligned. Gaps: even gaps as specified. Function: mechanisms operate correctly.
Packaging Inspection
Correct packaging: per specification. Labeling: correct labels, readable. Quantity: correct count. Protection: adequate protection for shipping. Cleanliness: no dirt or debris in package.
Inspection Methods
100% Visual Inspection
Every part inspected. Suitable for: critical products, low volume, when process is not capable. Time-consuming but comprehensive. Ensures every part meets visual standard.
Sampling Visual Inspection
Statistical sample inspected. Suitable for: high volume, stable processes, non-critical products. Based on AQL standards. Risk of missing defects in uninspected parts.
Sequential Inspection
Inspect at each manufacturing stage. Catch defects early. Prevent value-added work on defective parts. Provides process feedback at each stage.
Comparison Inspection
Compare to reference sample. Quick and consistent. Useful for: color matching, surface finish, defect levels. Reference samples must be maintained and updated.
Inspector Training
Training Content
Product knowledge: understand product requirements and function. Defect identification: recognize defect types and severity. Acceptance criteria: understand what is acceptable. Inspection method: proper inspection technique. Documentation: how to record results.
Training Methods
Classroom training: theory and standards. On-the-job training: practical inspection with experienced inspector. Reference samples: hands-on defect identification. Regular retraining: maintain and update skills.
Inspector Qualification
Vision test: verify adequate vision and color perception. Demonstration: inspect sample parts under supervision. Written test: verify knowledge of standards and procedures. Periodic re-qualification: maintain qualification.
Documentation
Inspection Records
Record inspection results. Include: part identification, inspection type, result (pass/fail), defects found, inspector, date. Maintain for traceability.
Defect Photos
Photograph significant defects. Include: defect description, part identification, date. Use for: root cause analysis, training, customer communication. Maintain defect library for reference.
Defect Tracking
Track defect types and frequency. Identify trends: increasing defect rate, new defect types. Focus improvement efforts on high-frequency defects. Monitor effectiveness of corrective actions.
At Fulei Metal
Our visual inspection program includes: inspection at every manufacturing stage. Trained and qualified inspectors. Reference samples for comparison. Adequate lighting and inspection stations. Defect documentation and tracking. Regular inspector training and re-qualification. Customer-specific acceptance criteria. We ensure that our products meet visual quality standards before shipping to our global clients.
Conclusion
Visual inspection is a critical first line of defense in quality control. At Fulei Metal, our systematic visual inspection program catches defects early, ensures consistent appearance, and provides confidence that our products meet our clients’ quality expectations.
For OEM buyers the practical next step is a drawing review — see our quality inspection service for what we need and how fast we turn it around. This work sits inside our custom sheet metal fabrication capability, and Outgoing Inspection explains the technical background in more detail.
What a Visual Inspection Standard Has to Define
A visual inspection is only repeatable if the drawing or the purchase order answers three questions: which surfaces are cosmetic, what defect size is acceptable on each, and under what viewing condition the part is judged. Without those three, two inspectors will disagree about the same part.
| Defect | Judged against | Typical cause |
|---|---|---|
| Scratch or scuff | Depth and position first, then length. A shallow mark on a functional face is usually acceptable; the same mark on a cosmetic face is not | Handling after forming, parts sliding against each other in a stillage, unprotected edges |
| Dent or depression | Whether it disturbs the mating surface or reads as a witness under glancing light | Stacked storage, impact during transport between operations, over-tight clamping |
| Burr or sharp edge | Whether it exceeds the drawing edge condition, and whether it can cut handling staff or damage a cable passing through | Worn or mis-set tooling, insufficient deburring step, laser dross on the underside |
| Colour variation | Comparison against the approved sample under agreed lighting, or against a stated ΔE limit | Powder batch change, film thickness variation, cure oven loading and position |
| Weld spatter or undercut | Position, extent and whether it sits on a sealing or cosmetic surface | Current and travel speed, missing anti-spatter, contamination on the joint |
| Coating run, sag or orange peel | Whether it is visible on a cosmetic face at normal viewing distance | Over-application, gun distance and technique, cure profile |
If the drawing carries no cosmetic definition, the practical default is that outside faces seen by the end user are cosmetic and everything else is functional only. Say so explicitly if that default is wrong for your product.
Frequently Asked Questions
How should “cosmetic surface” be defined on a drawing?
Mark the faces. A note such as “faces A and B cosmetic; all other faces functional” is enough, and it is far more useful than a general finish note, because it tells the inspector where to look and tells the operator where to handle with care. If the part is assembled into a housing, the faces still visible after assembly are the ones that matter.
Do you inspect appearance under special lighting?
Cosmetic surfaces are judged under diffuse daylight-equivalent lighting at a normal viewing distance — not under a magnifier. Inspecting with raking light or a loupe finds defects the end user will never see, and rejecting parts on that basis raises cost without raising quality.
Two batches of the same powder show a slight colour difference. Is that a defect?
If both match the approved sample within your stated tolerance, no. Powder colour varies with substrate, film thickness and cure, and batch variation is normal unless a ΔE limit is stated. If your product uses parts from different batches side by side, set the ΔE limit on the drawing — it is the only way it can be controlled.
Questions about a specific part are usually faster to answer against the drawing — send it through the route below.
