IP Ratings Explained: A Buyer’s Guide to Enclosure Protection

If you’re sourcing sheet metal electrical enclosures, you’ve seen the codes: IP54, IP65, IP67. They look technical, but the concept is simple — each digit tells you exactly what the enclosure protects against. In this guide, we’ll break down what IP ratings actually mean, which rating you need for your environment, and how we at Fulei Metal achieve each level through enclosure design and manufacturing.

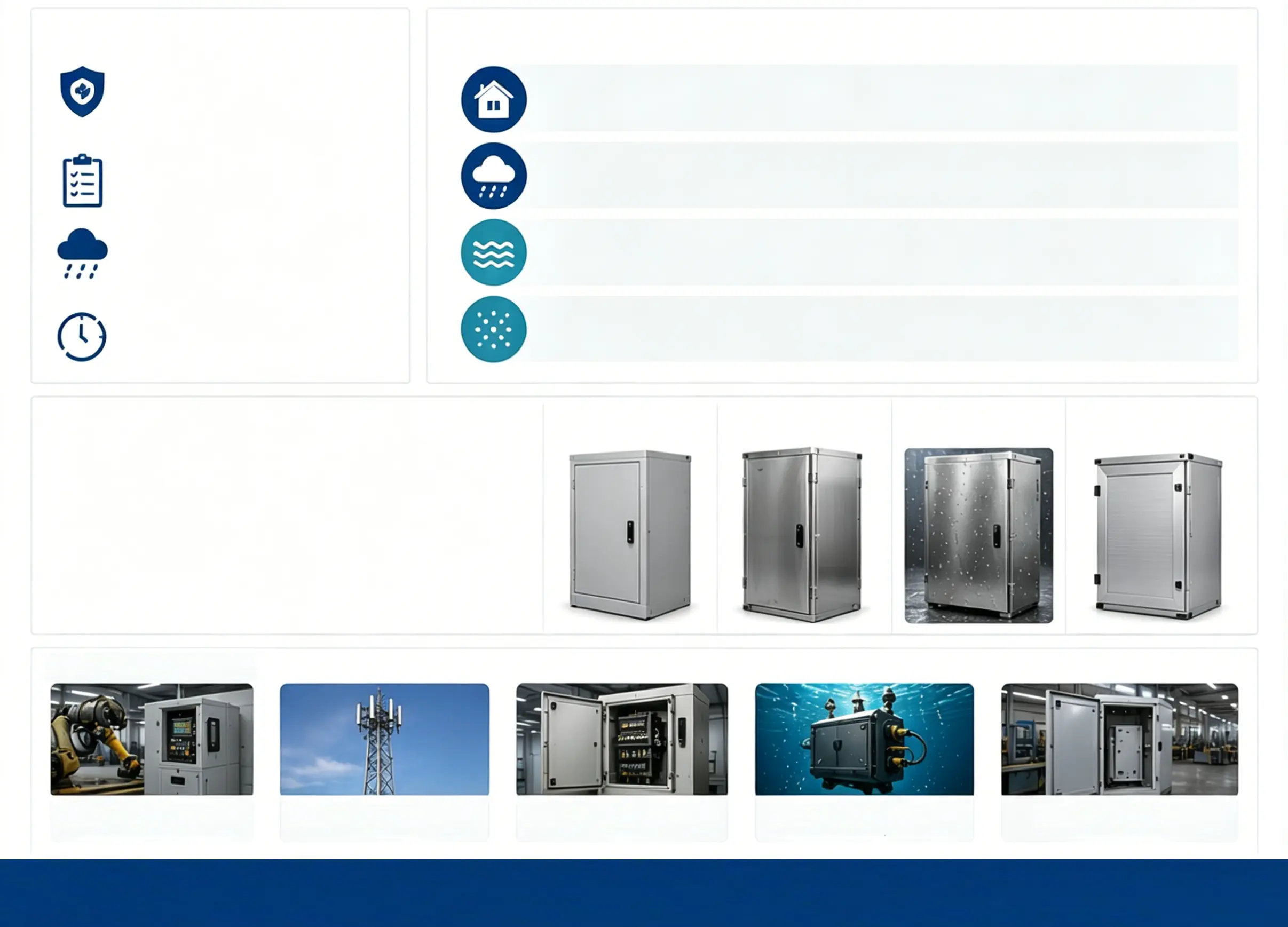

What IP ratings actually mean

IP stands for “Ingress Protection,” defined by the international standard IEC 60529. The format is always two digits: IP + first digit (solid protection) + second digit (liquid protection). Each digit has a specific scale from 0 (no protection) to 6 or 9 (maximum protection). There’s no averaging — an enclosure rated IP67 is not “better than IP65 in every way.” It passed different tests. Understanding this distinction will save you from expensive over-specification.

Solid protection: the first digit

The first digit ranges from 0 to 6 and tells you what size solid object the enclosure can keep out:

First Digit	Protection Against	What It Means in Practice
0	No protection	Open enclosure — indoor clean rooms only
1	Objects > 50 mm	Back of hand protection — large tools
2	Objects > 12.5 mm	Finger protection — prevents accidental contact
3	Objects > 2.5 mm	Tool protection — screwdrivers, wires
4	Objects > 1.0 mm	Wire protection — most small tools
5	Dust protected	Limited dust ingress permitted — won’t interfere with operation
6	Dust tight	Complete protection against dust — vacuum tested

Most industrial electrical enclosures we manufacture are rated 5 or 6 for solids. An IP54 enclosure allows some dust but won’t let it accumulate to a harmful level. An IP65 or IP66 enclosure is completely sealed against dust — this is what you need for dusty factory floors, outdoor installations, or any environment with airborne particles.

Liquid protection: the second digit

The second digit is where most buyers get confused. It ranges from 0 to 9K, and the tests are very specific:

Second Digit	Protection Against	Test Details
0	No protection	—
1	Vertically dripping water	10 mm/min rainfall for 10 minutes
2	Dripping water at 15° tilt	10 mm/min, enclosure tilted 15° from normal
3	Spraying water at 60°	Spray nozzle, 10 L/min, 5 minutes
4	Splashing water, any direction	Oscillating spray, 10 L/min, 10 minutes
5	Water jets, 6.3 mm nozzle	12.5 L/min at 30 kPa, all directions, 3 minutes
6	Powerful water jets, 12.5 mm nozzle	100 L/min at 100 kPa, all directions, 3 minutes
7	Temporary immersion	1 meter depth for 30 minutes
8	Continuous immersion	Depth and duration specified by manufacturer, typically > 1 meter
9K	High-pressure, high-temperature jet	80°C water at 8–10 MPa — wash-down environments

Here’s the critical point: IP67 does not automatically mean IP66. An enclosure that passes submersion (IPX7) might still fail the water jet test (IPX6). If you need both, you must specify IP66/IP67 — and the enclosure design must account for both test conditions.

Which IP rating do you actually need?

This is the question we help our customers answer most often. Here’s our practical guide based on the real-world environments we see:

Indoor, clean environment — IP54 is usually enough

For electrical cabinets inside a climate-controlled factory or data center, IP54 provides adequate dust protection and splash resistance from occasional cleaning. The enclosure doesn’t need to be hermetically sealed, which means fewer gaskets, simpler door designs, and lower cost. We manufacture IP54 enclosures with a single continuous gasket around the door perimeter and standard cable entry plates.

Indoor, dusty environment — IP65 minimum

Think woodworking shops, textile mills, grain processing, cement plants. These environments have fine airborne dust that will work its way into any opening. IP65 gives you complete dust protection and resistance to low-pressure water jets from cleaning. At our factory, we achieve IP65 with a combination of compression gaskets, sealed cable glands at every entry point, and fully welded seam construction with no gaps.

Outdoor, sheltered — IP65 with weather considerations

An enclosure mounted under an eave or canopy still sees humidity, temperature swings, and wind-driven rain. IP65 handles the water, but you also need to think about the material. Mild steel with powder coating is fine for sheltered outdoor use if the coating is intact. We typically recommend 80–120 micron powder coat for outdoor IP65 enclosures, with a zinc-rich primer underneath for cut edges.

Outdoor, fully exposed — IP66 minimum

For enclosures exposed to direct rain, snow, and wind, IP66 is the practical minimum. The water jet test at 100 L/min simulates heavy wind-driven rain. We manufacture IP66 enclosures with reinforced doors, double-layer gaskets, rain channels above the door opening, and all cable entries routed through the enclosure bottom with sealed compression fittings. We also add a 1.5 mm drip edge around the roof to shed water before it reaches the door seal.

Wash-down environments — IP69K

Food processing, dairies, pharmaceutical clean rooms — these environments use high-pressure hot water wash-down daily. IP69K is the rating for this. Achieving IP69K requires stainless steel (typically 304 or 316), continuous TIG-welded seams with no porosity, and specialized high-temperature silicone gaskets rated to 200°C. We’ve manufactured IP69K enclosures for food processing equipment in the UK and US markets.

Submersible/underground — IP67 or IP68

For enclosures buried in the ground, installed in flood-prone areas, or mounted on equipment that gets submerged (marine, wastewater), you need IP67 or IP68. The submersion test at 1 meter for 30 minutes is the baseline for IP67. IP68 requires the manufacturer and customer to agree on depth and duration — typical is 3 meters for 24 hours. These enclosures use O-ring seals in machined grooves, welded construction with leak-tested seams, and sealed cable entries with potting compound.

How enclosure design achieves each rating

The leap from IP54 to IP66 isn’t just “better gaskets.” It’s a fundamentally different enclosure design. Here’s how we approach each level:

Door and gasket design

IP54 can use a simple foam gasket glued into a channel. IP65 requires a compression gasket — typically EPDM or silicone — compressed to 25–35% of its original thickness when the door is closed. IP66 and above need a continuous gasket in a formed channel with multi-point latching to ensure even compression across the full door perimeter. We test every new enclosure design by running a 0.1 mm feeler gauge around the closed door — if it slides in anywhere, the gasket isn’t compressed enough.

Cable entry management

This is the single most common point of IP rating failure. You can have a perfectly sealed enclosure body, but if the cable glands don’t match the enclosure rating, water and dust will enter through the cable entries. For any enclosure rated IP65 or higher, we specify cable glands with matched IP ratings — and we test them. A standard M20 cable gland rated IP68 costs about $0.80–1.20 more than an unrated one. It’s not the place to save money.

Drainage and condensation

A completely sealed enclosure will accumulate condensation from internal temperature swings. For outdoor enclosures, we often incorporate a breather drain — a small IP-rated vent that allows pressure equalization and moisture to escape while keeping liquid water out. These cost around $3–5 each and can prevent internal corrosion that would otherwise destroy the electronics inside over 2–3 years.

Material and coating considerations for outdoor enclosures

An IP66 enclosure made of bare mild steel will still rust. The IP rating protects against ingress, not corrosion. Here’s what we recommend:

• Mild steel + powder coat: Good for indoor and sheltered outdoor. Requires intact coating — any scratch that reaches bare steel will rust. We use 80–120 micron polyester powder coating with zinc-rich primer.
• Galvanized steel + powder coat: Best value for outdoor. The zinc layer provides cathodic protection at cut edges and scratches. Powder coat adds UV resistance and color. Our standard outdoor enclosures use this combination.
• 304 stainless steel: Required for wash-down, coastal (within 5 km of salt water), and food processing. Doesn’t need coating — passivation treatment is sufficient.
• 316 stainless steel: Marine environments, chemical plants, and anywhere with chloride exposure beyond what 304 can handle. It costs roughly 40% more than 304 but can last decades in salt spray conditions.

Cost implications of higher IP ratings

Higher IP ratings cost more — but the increase comes from design and labor, not just materials. Here’s a rough comparison for a typical 400 × 300 × 200 mm steel enclosure at our factory:

IP Rating	Relative Cost	What You’re Paying For
IP54	1.0x (baseline)	Basic construction, single gasket, standard paint
IP65	1.3x	Compression gasket, sealed glands, welded seams
IP66	1.6x	Double gasket or deep channel, multi-point latch, breather drain, drip edge
IP67	2.0x	O-ring sealed, continuous weld with leak test, potted cable entries
IP69K	2.8x	Stainless steel, TIG welded, high-temp gaskets, polished seams

The biggest cost driver for IP66 and above is labor. Continuous TIG welding and leak testing add 40–60% more fabrication time compared to an IP54 enclosure. If you’re ordering in volume (500+ units), the per-unit labor cost comes down as we build dedicated fixtures and processes.

Common mistakes to avoid

1. Forgetting cable entry IP rating. The enclosure body is IP66 — but are your cable glands? We’ve seen this on at least a third of the enclosure drawings we receive. The enclosure rating is only as strong as its weakest opening.
2. Using the wrong gasket material. EPDM is great for general outdoor use (rated to -40°C to +120°C) but degrades with oil and solvent exposure. Silicone handles higher temperatures and chemicals but is mechanically softer. Neoprene is affordable but ages poorly under UV. Choose the gasket for the environment, not the price.
3. Specifying IP67 for a ventilated enclosure. You can’t have both a breather vent and IP67 submersion — they contradict each other. Pick the actual worst-case scenario, not “everything just in case.”
4. Ignoring condensation. An IP66 enclosure protects against external water but creates its own internal moisture from temperature cycling. A breather drain or desiccant pack is cheap insurance against internal corrosion.
5. Assuming IPX7 implies IPX6. As mentioned above, these are different tests. If you need both, specify both. The enclosure design for each is different.

At Fulei Metal, we treat IP rating compliance as a manufacturing requirement, not a paperwork exercise. Every enclosure design goes through a pre-production sample that we inspect for gasket compression, weld continuity, and fit. For IP66 and above, we offer third-party IP testing through SGS or TÜV — we’ll test the first article and provide the certificate with your order.

Need electrical enclosures manufactured to a specific IP rating? Send us your drawings or requirements, and we’ll give you a quote and a design-for-manufacturing review within 48 hours.
